Ceramic boards are composites of ceramic fibers. This product do not normally get wet by non-ferrous metal melts and is highly resistant to spalling, thermal shock and abrasion. It can be easily cut and shaped. Ceramic boards have low content of organic binders which would burn out in the early steps of firing, in temperatures of 100°C, but helps to improves resilience.
Ability to produce ceramic boards in different dimensions and densities

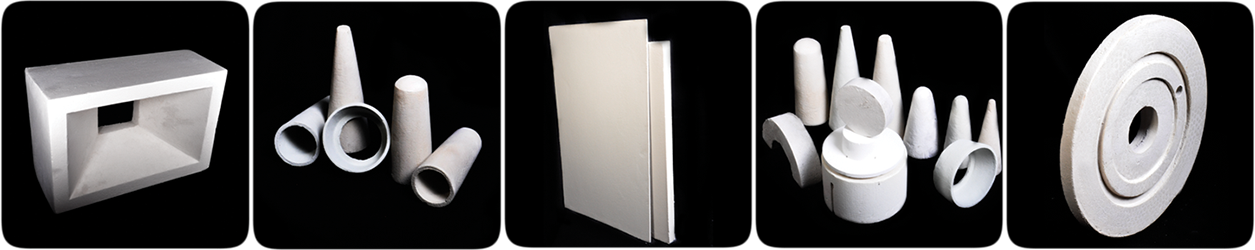

Ability to produce Vacuum Formed and Shaped Boards according to customer order.
Ability to produce Ceramic Fiber Blocks with thickness of 100 mm or higher.
Application
Iron & Steel Industries
- expansion joints
- back-up insulation
- heat shields
Non ferrous Industries
- Tundish covers in casting copper and copper alloys
Glass Industry
- back-up insulation in melting furnaces
- protection of burners
Furnace Building
- hot-face lining material
Technical Information for RCF Board
|
Grade |
STD |
HA |
HZ |
|
Item |
General |
High Alumina |
High Zirconia |
|
Classification Temp. (ºc) |
1260 |
1400 |
1400 |
|
Color |
White |
White |
White |
|
Max-working Temp. (ºc) |
1260 |
1350 |
1450 |
|
Safe-working Temp. (ºc) |
1100 |
1200 |
1350 |
|
Density (kg/m³) , ASTM C167 |
250-350 |
250-350 |
250-350 |
|
Linear Shrinkage (%) (24h. 128kg/m³),ASTM C356 |
1100x24 £3 |
1200x24 £3 |
1350x24 £3 |
|
Thermal Conductivity (at 1000C°) (W/m.K) ,ASTMC201 |
0.2 |
0.2 |
0.2 |
|
Chemical Analysis for Base Fibers (%) |
|||
|
Al2O3 |
47 |
54 |
35-45 |
|
SiO2 |
52 |
45 |
45-35 |
|
ZrO2 |
- |
- |
15 |
|
Fe2O3 |
£0.3 |
£0.2 |
£0.20 |
|
K2O + Na2O |
£0.25 |
£0.20 |
£0.20 |
|
Standard Size (mm) |
Height: up to 1200 |
||
|
Width: up to 1000 |
|||
|
Thickness: 5 to 70 |
|||
|
Packing |
5 Layer Carton |
||
